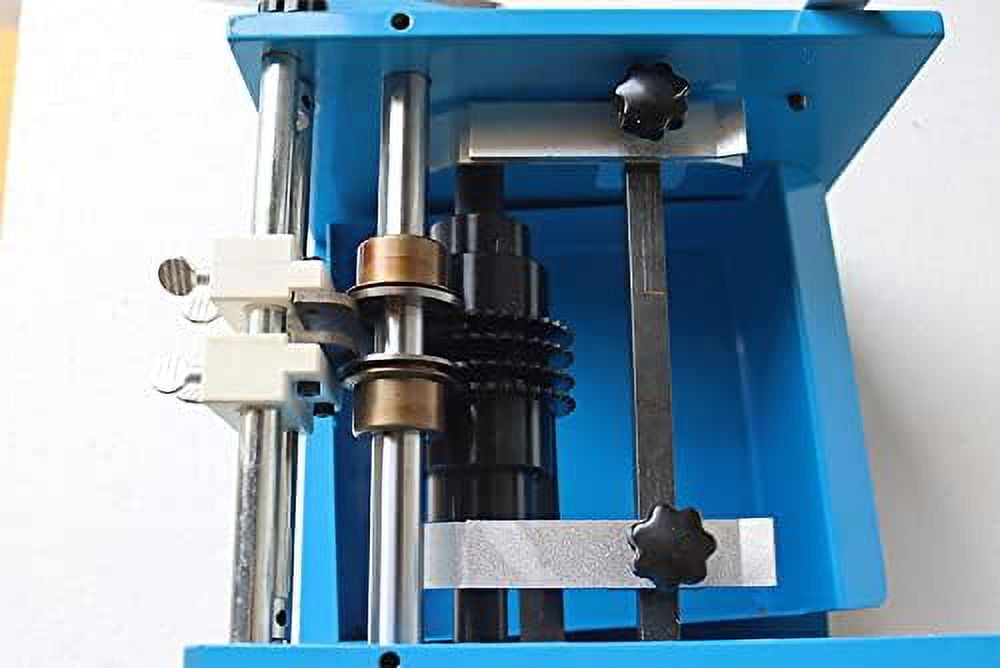

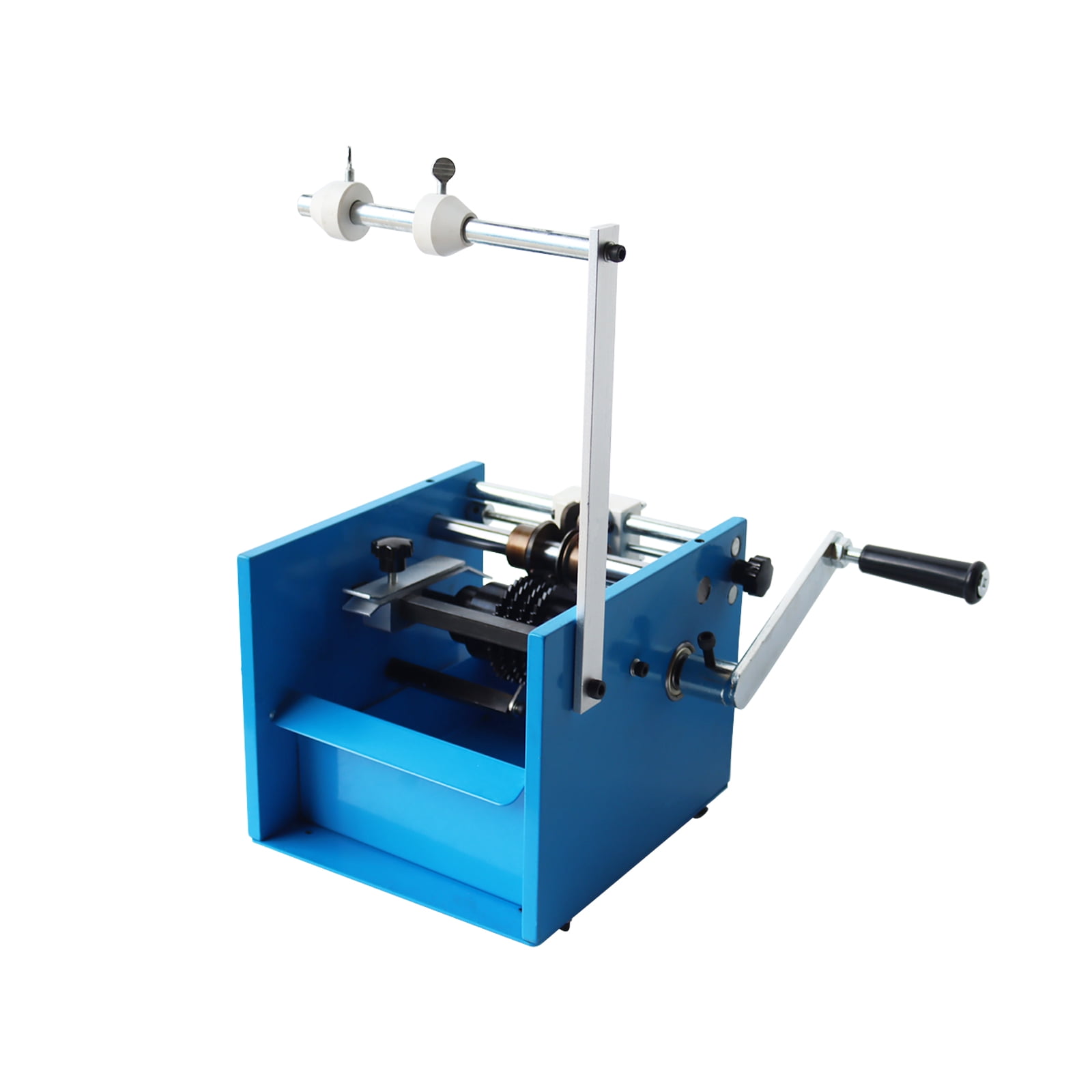

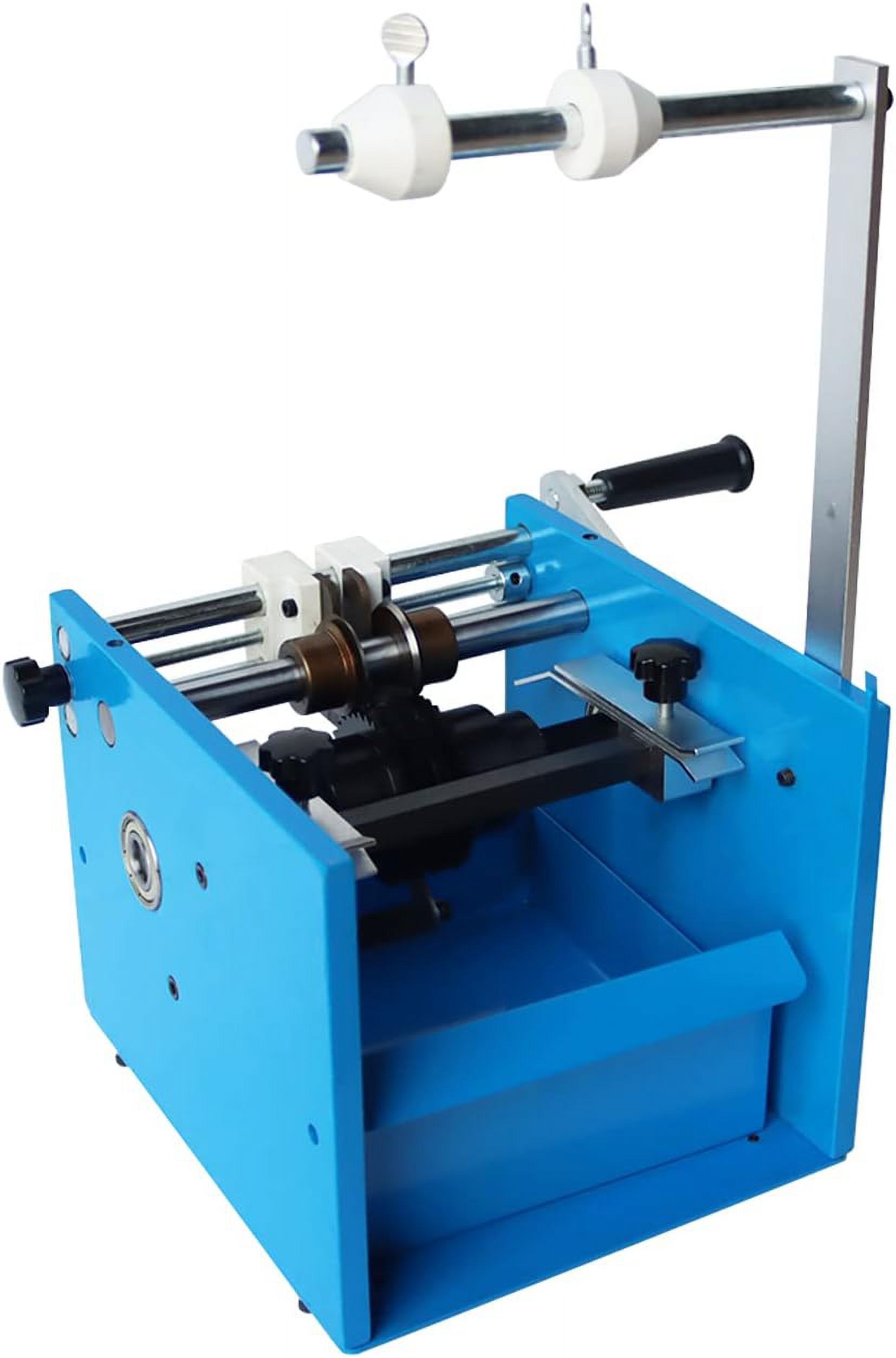

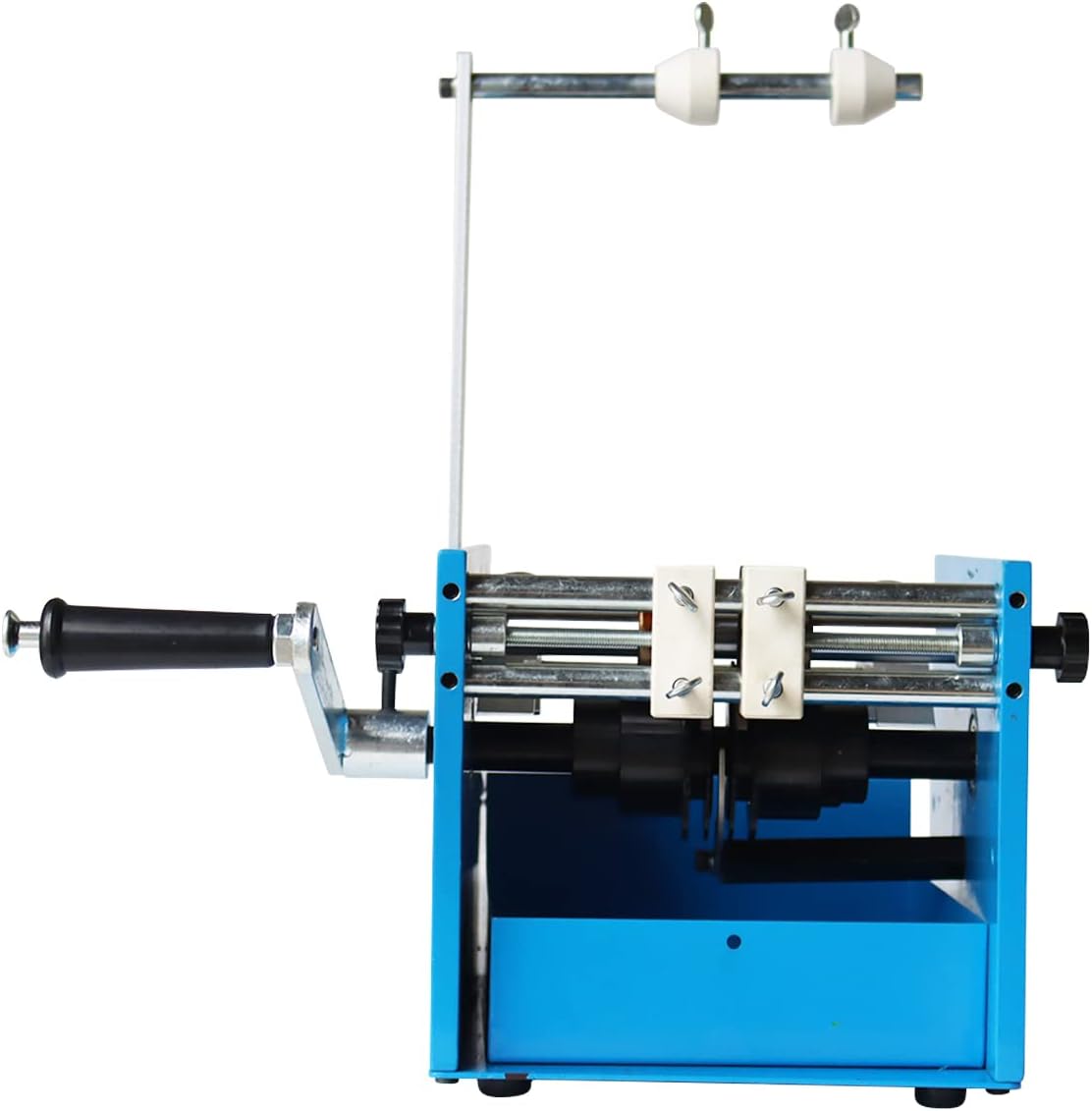

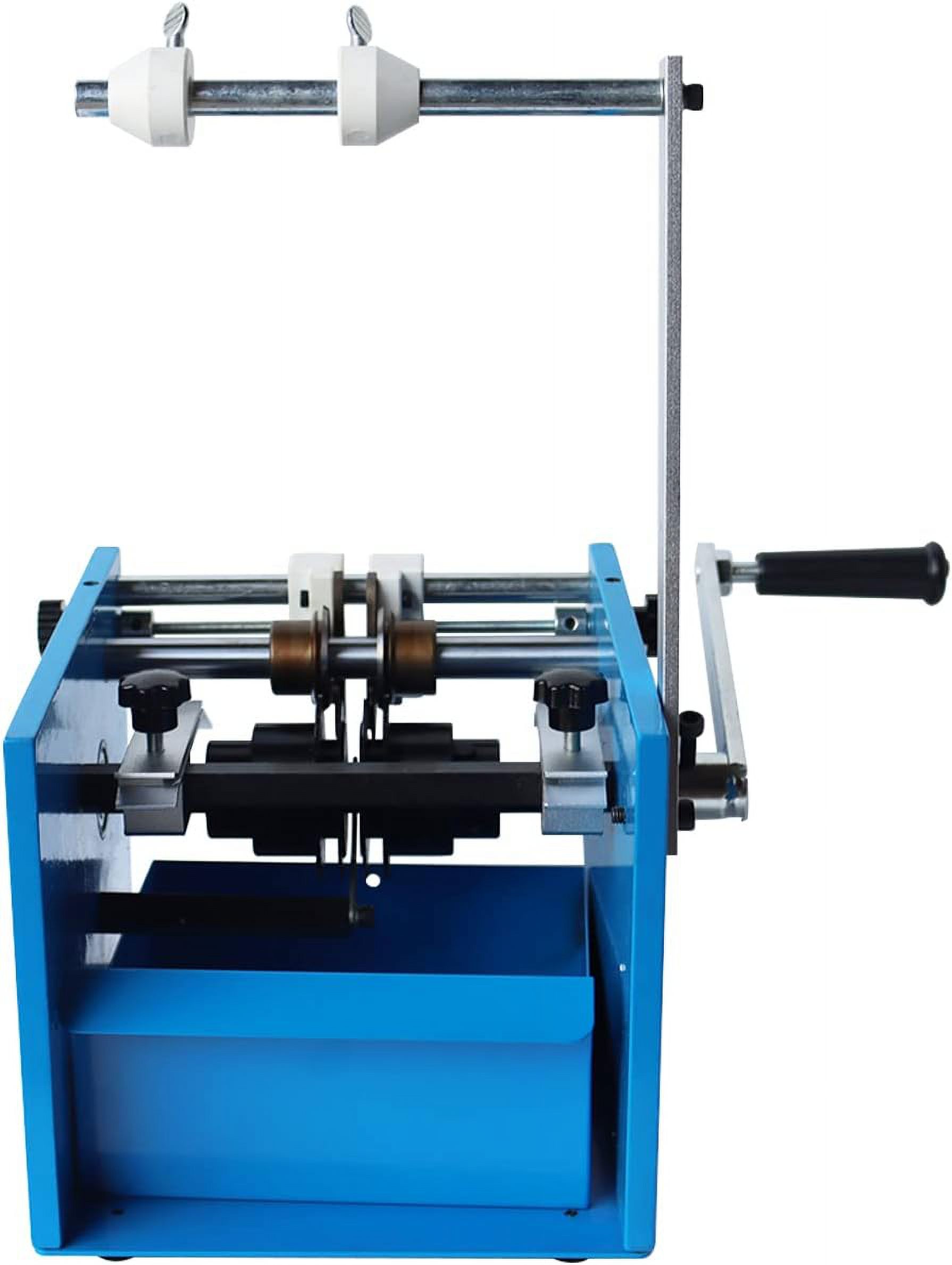

PreAsion U Type Resistor Axial Lead Bend Cut & Form Machine Resistor Forming Machine

<p>Product Overview:<br>It is suitable to be used as to various resistors, diodes, and otherelectronic components progress. Cutting legs and molding can be finished at the same time, also the lead length and span can be adjusted as we needed. It suitable for mass production for the operation is so easy.</p> <p>Product Parameter:<br>1. Item: U type<br>2. A (span): 6-40mm<br>3. B (lead length): 3.6-15mm<br>4. C: 1.2mm<br>5. D (body length): 1.5-6mm<br>6. W (wiring): 0.35-1mm<br>7. Capability: 40000-60000pcs/H</p> <p>Features:<br>1. Compact and easy operation and suitable for using on limited space, has excellent cutting or bending-performance for resistor and diodes.<br>2. Made of steel materials imported from Japan, its cutters are durable.<br>3. The preduction capacity up 60,000pcs/H.<br>4. Without electrical power. Low capital investment.</p> <p>Item Included (170730):<br>PreAsion U Type Resistor Bend Form Machine</p>

• 【Widely Application】It is suitable for pin cutting of various resistors, capacitors, crystals, diodes and other electronic components.

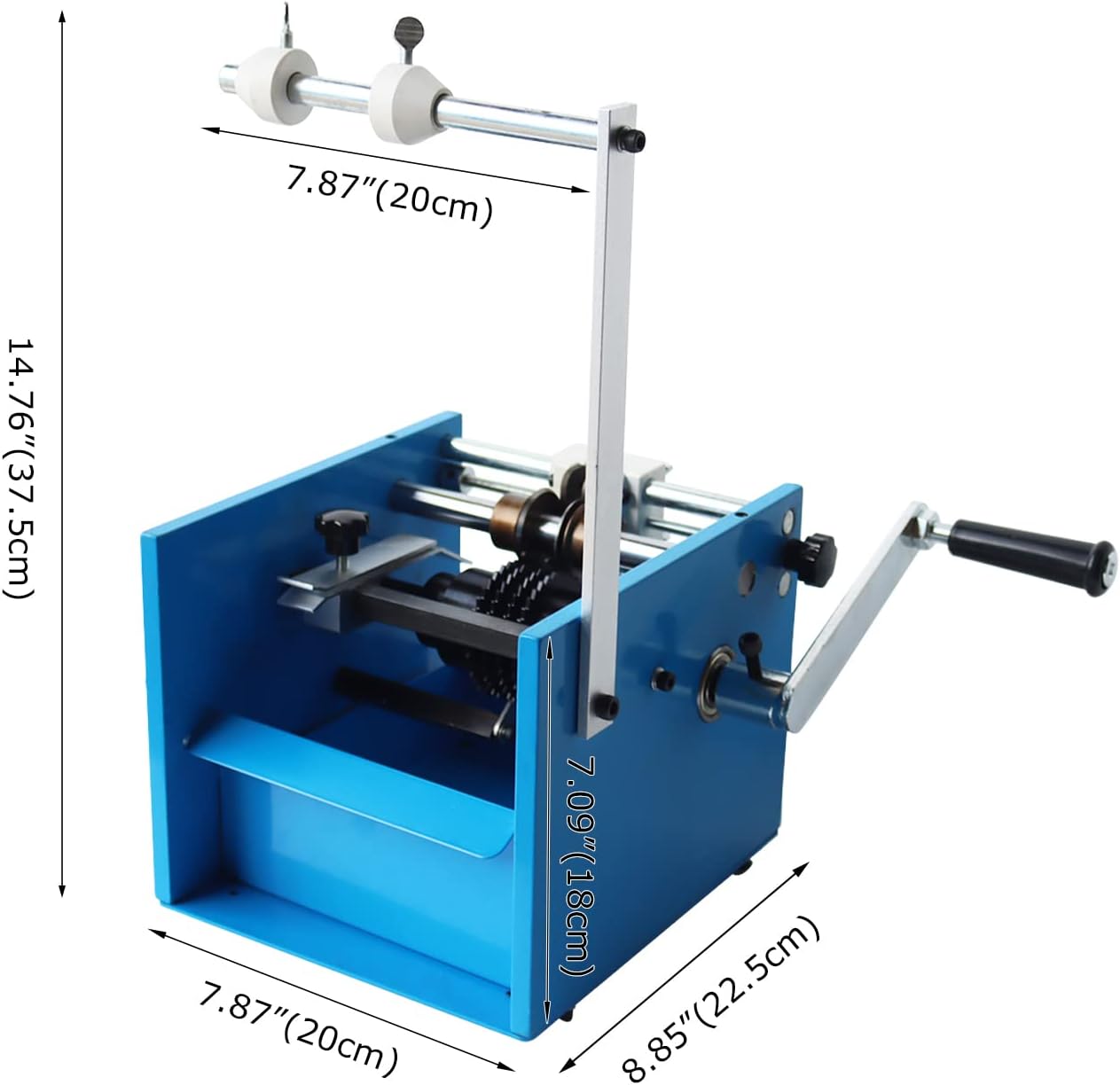

• 【Hand-cranked operation】Hand-cranked operation, without electrical power, it is more safer. Small size, total 14.76inch height, so it can be used on the desktop to save space.
• 【Compact Structure】Compact structure, suitable for use in limited space, excellent cutting or bending performance for resistors and diodes.
• 【Easy to Operate】It is simple to operate and easy to maintain. At the same time, with the improvement of workers' proficiency, the processing volume will also increase. The preduction capacity up 60,000pcs/H.
• 【Steel Blade】The blade is made of imported steel with sharp edge.
