DIN Rail Single Port 2.5 Gigabit PoE Injector 802.3af/At/Bt Negotiation Up to 90W Output PoE++ for PTZ IP Camera,1 * DIN Rail Single Port 2.5 Gigabit PoE Injector

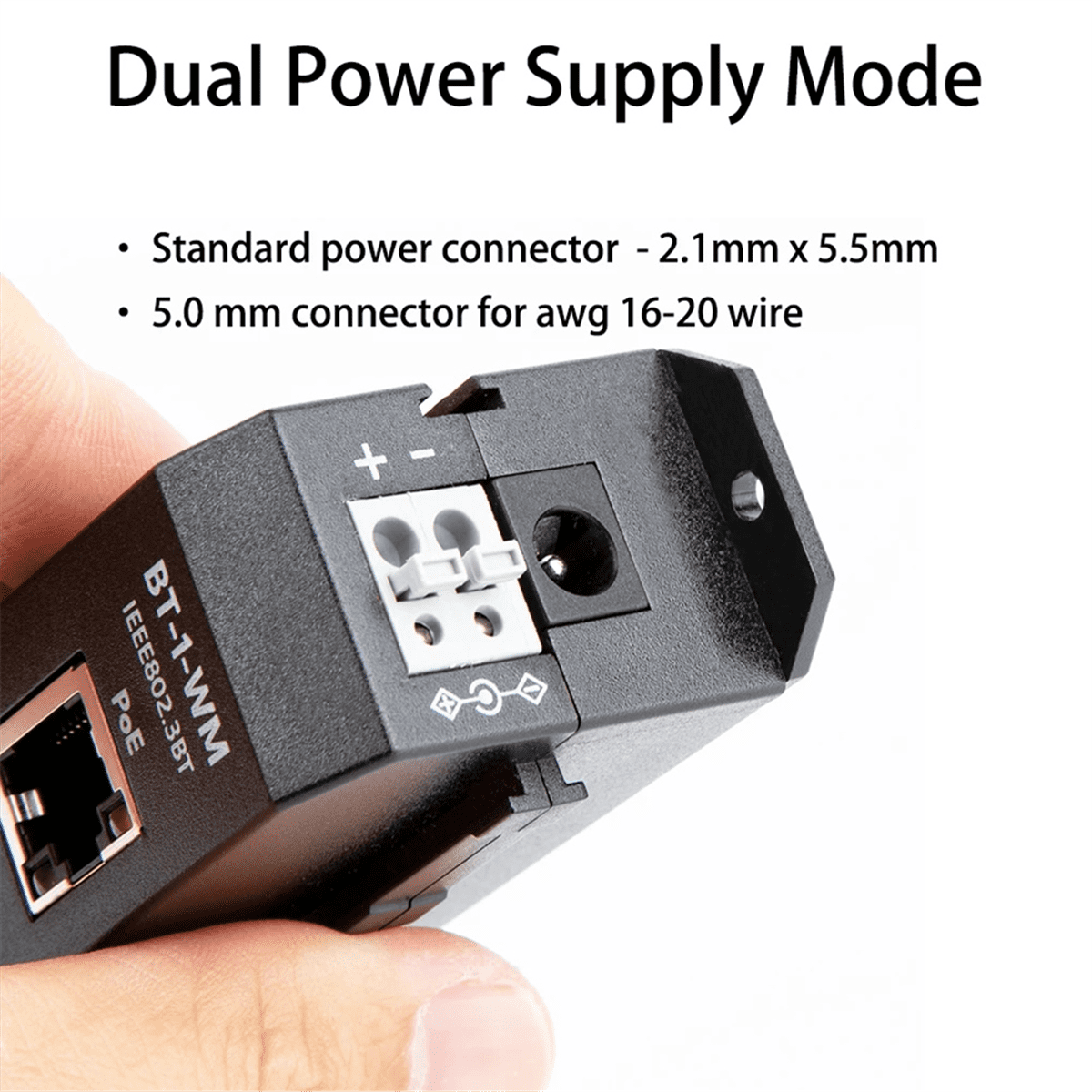

Product Features:<br>Instantly upgrade your network switch to IEEE 802.3at PoE+ or 802.3bt PoE++<br>Active negotiation protects non-PoE Devices<br>2.5 Gigabit Data capability<br>Single port PoE with 90W max output, requires extra power adapter, BT-1--48V120W kits is optional<br>Use to power IEEE 802.3at/bt (PoE+/PoE++) devices like, WiFi Access Points and Cameras<br>Product Specifications:<br>Data + PoE Ports: 1 Shielded RJ-45<br>Data Ports: 1 Shielded RJ-45<br>Data Rate: 2.5 Gigabit<br>Dimensions: 88x30x42mm<br>Input voltage: 48-57 Volts DC<br>Max. Amps Per Port: 1.61 Amps<br>Output Voltage: 48-57 Volts<br>PoE Method: Active<br>PoE Standard: IEEE 802.3af/at/bt<br>PoE Mode: 4 pair PoE operation (type 4)<br>2 pair PoE supported (type 3) and 802.3at/af<br>Power Input: Standard power connector - 2.1mm x 5.5mm<br>5.0 mm connector for awg 16-20 wire<br>Mount Type: wall or DIN rail mounting<br>Operating Humidity: 5% to 90%<br>Operating Temperature Range: 0 - 50℃<br>Weight:100g<br>Please take note that this PoE injector does not include the power supply. please select the suitable power supply according to the power consumption of your powered devices.<br>The product batches are different, the appearance may be different, but it not affect the use.<br>Colour:As Shown<br>Material:Plastic<br><br>Package Contents:<br>1 * DIN Rail Single Port 2.5 Gigabit PoE Injector<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Upgrade your PoE network with the flexibility and features of the IEEE 802.3bt (90 , PoE class 4 ) for a small group of devices without the expense and hassle of installing a new PoE switch.

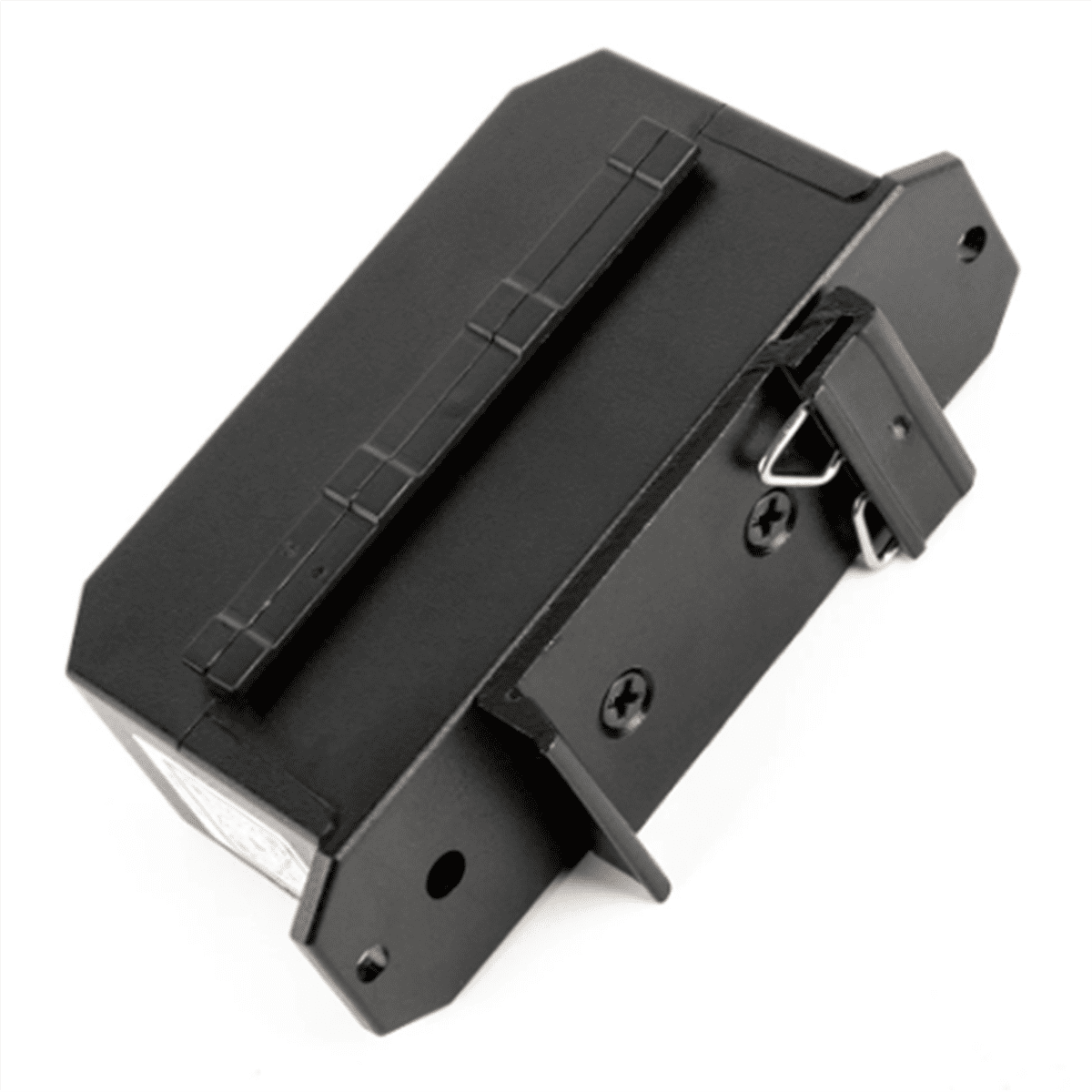

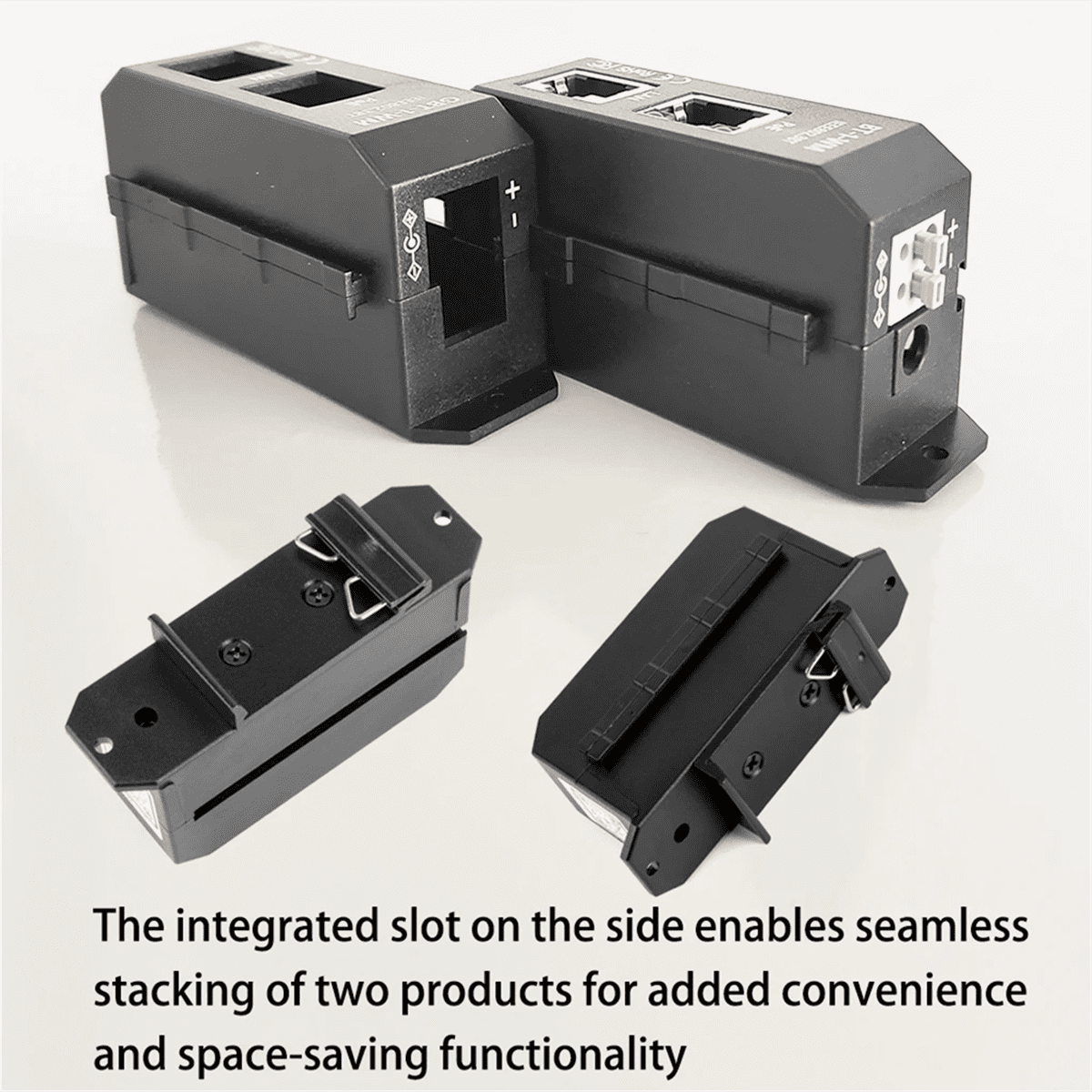

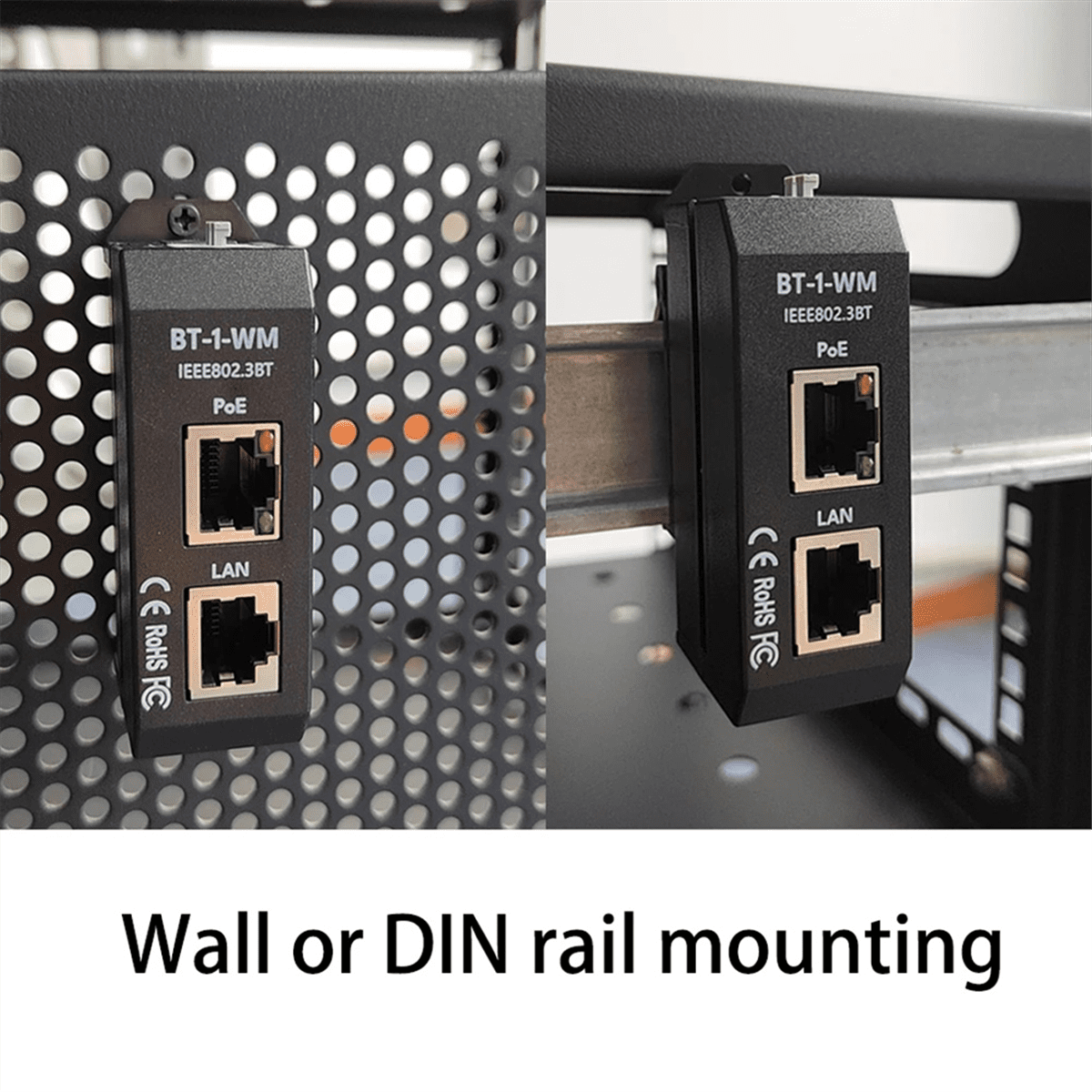

• Dual installation mode, offers wall or DIN rail mounting type to accommodate various installation environments, ensuring flexibility and ease of setup. Further more, the integrated slot on the side enables seamless stacking of two/or more products for added convenience and space-saving functionality.
• Active PoE means Security. Active negotiation means that this injector negotiate with your device prior to delivering power. This feature means that you can rest that your end devices are safe from accidental overpowering.
• Power High Powered Devices like WiFi , PTZ Cameras, Q series IP Cameras, PoE Lighting and more. This 802.3af/at/bt compliant Power over Ethernet (PoE) injector takes power from the DC power source and adds it to a Cat5, Cat5e, or Cat6 Ethernet data cable to power your PoE devices.
