Caplugs SFP-24 SFP Series, Plastic Covers for Split-Flange Connections, LD-PE, to fit SAE 3000 lbs., 4 Bolt Hydraulic Flanges, Dash -24, Flange Size 1-1/2", Red, Pack of 100 (99191876)

Caplugs SFP Series Covers for Split-Flange Connections are designed for use on SAE 3000 lb., four-bolt split hydraulic flanges. These covers have a design that allows the user to grab the central pull tab and insert the cover into a split-flange connector hole, protecting ports, bolt holes, and flange surfaces by fitting securely into the opening. All products in the SFP Series are designed for use on SAE (Society of Automotive Engineers) 3000 lb. Meaning that these little covers for split-flange connections can withstand up to 3000 PSI (pound-force per square inch). Despite their size, these covers are incredibly strong! There are different sizes of covers to choose from in the SFP Series to fit a range of split-flange connections. This particular cover is made to cover a flange dash size of -24", and is made to fit a flange size of 1-1/2". This particular model also has the following dimensions: Length 3.69" x Width 2.38" x Height 0.75" x Plug Min OD 1.46" x Plug Max OD 1.55". The low-density polyethylene (PE-LD) that these covers are made from is not only strong to hold into split-flange connections; they are also temperature resistant. The Caplugs SFP Series of covers can provide service from -94 to 175° Fahrenheit, or -70 to 79° Celsius. Caplugs prides itself on its extensive line of premium products that are suitable for a plethora of industries, from aviation to medical, general manufacturing and everything in-between. At Caplugs, we provide the broadest range of solutions and the highest quality parts right when you need them. Our teams work diligently to ensure consistent results, with more engineers on staff, processes for creative solutions and molding experts for reliable quality.

• SFP SERIES: Caplugs SFP Series Covers for Split-Flange Connections are designed for use on SAE 3000 lb., four-bolt split hydraulic flanges. These covers have a design that allows the user to grab the central pull tab and insert the cover into a split-flange connector hole, protecting ports, bolt holes, and flange surfaces by fitting securely into the opening.
• FOR SAE 3000 LB: All products in the SFP Series are designed for use on SAE (Society of Automotive Engineers) 3000 lb. Meaning that these little covers for split-flange connections can withstand up to 3000 PSI (pound-force per square inch). Despite their size, these covers are incredibly strong!

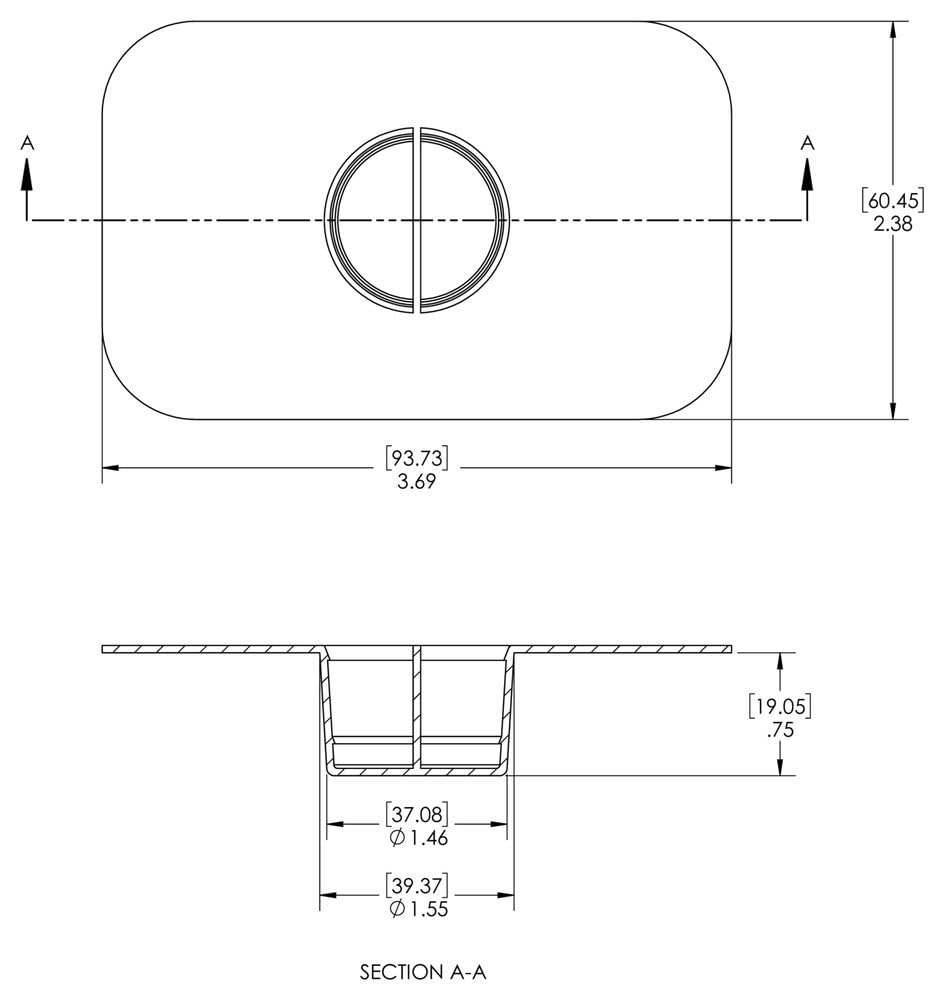

• MULTIPLE SIZES: There are different sizes of covers to choose from in the SFP Series to fit a range of split-flange connections. This particular cover is made to cover a flange dash size of -24", and is made to fit a flange size of 1-1/2". This particular model also has the following dimensions: Length 3.69" x Width 2.38" x Height 0.75" x Plug Min OD 1.46" x Plug Max OD 1.55".
• WIDE TEMPERATURE RANGE: The low-density polyethylene (PE-LD) that these covers are made from is not only strong to hold into split-flange connections; they are also temperature resistant. The Caplugs SFP Series of covers can provide service from -94 to 175° Fahrenheit, or -70 to 79° Celsius.
• PARTS YOU CAN TRUST: Caplugs prides itself on its extensive line of premium products that are suitable for a plethora of industries, from aviation to medical, general manufacturing and everything in-between. At Caplugs, we provide the broadest range of solutions and the highest quality parts right when you need them. Our teams work diligently to ensure consistent results, with more engineers on staff, processes for creative solutions and molding experts for reliable quality.
